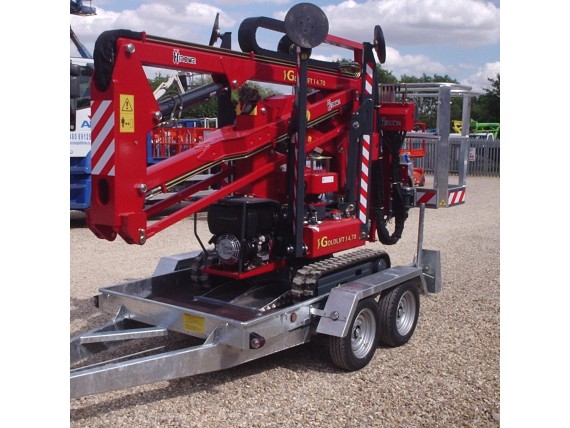

GPT 26 Access Platform Trailer (Hinowa 14.70 or similar)

  • Product Code: GPT26
  • This model has evolved from the need for a compact trailer that will carry a Hinowa 14.70 or similar machines and will double up as a general plant trailer for hire companies and end users. As with all other machine specific trailers in our range, attention has been paid in manufacturing a trailer that is light, compact, and easy to use for transporting small, tracked access platforms up to 15m working heights.

    A standard feature of this model is a height adjustable coupling this makes towing behind light vans possible with low tow bar heights, particularly if the tow vehicle is loaded.


    Standard features include:

    • Gross weight 2600kg
    • Payload 2150kg
    • Unladen weight 450kg
    • Heavy duty rubber suspension axles
    • Fully galvanised steel chassis
    • Easy to use steel loading ramps included with safety anti kick up feature
    • Rear prop stands to ease loading
    • 18mm resin coated plywood floor
    • 4 heavy duty lashing points
    • Rope hooks
    • Full road lighting in protective brackets included reverse lamps - Commercial quality
    • Industrial quality coupling fitted
    • Heavy duty jockey wheel
    • 200mm auto-reverse brakes on all wheels
    • Flat top steel mudguards to stand on
    • 13 pin electrical connection
    • Adjustable coupling height feature


    Optional Extras

    • Bracket mounted spare wheel
    • Bolt on track stops for tracked machines
    • Ratchet load straps
    • LED lighting, dual voltage
    • Winch kit
    • Insurance approved hitch lock/ wheel clamp


    Delivery available - Please ask for price
